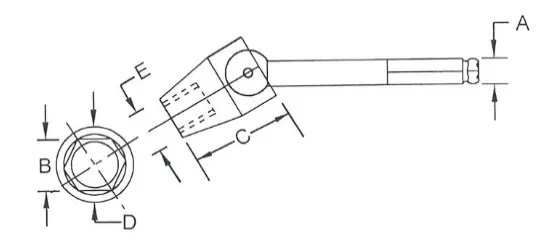

Hex Drive Universals for SAE
| STD. TYPE | TENSION TYPE | HEX DRIVE (A) | HEX SIZE (B) | SOCKET LENGTH (C) | SOCKET DIAMETER (D) | NOSE DIAMETER (E) |
|---|---|---|---|---|---|---|
| UP-88 | UPS-88 | 1/4 | 1/4 | 3/4 | 5/8 | 7/16 |
| UP-108 | UPS-108 | 1/4 | 5/16 | 3/4 | 5/8 | 7/16 |
| UP-128 | UPS-128 | 1/4 | 3/8 | 13/16 | 5/8 | 5/8 |
| UP-148 | UPS-148 | 1/4 | 7/16 | 7/8 | 11/16 | 11/16 |
| UP-168 | UPS-168 | 1/4 | 1/2 | 1 | 13/16 | 13/16 |
| UP-810 | UPS-810 | 5/16 | 1/4 | 3/4 | 5/8 | 3/8 |
| UP-1010 | UPS-1010 | 5/16 | 5/16 | 3/4 | 5/8 | 7/16 |
| UP-1210 | UPS-1210 | 5/16 | 3/8 | 13/16 | 5/8 | 5/8 |
| UP-1410 | UPS-1410 | 5/16 | 7/16 | 7/8 | 11/16 | 11/16 |
| UP-1610 | UPS-1610 | 5/16 | 1/2 | 1 | 13/16 | 13/16 |
| UP-1810 | UPS-1810 | 5/16 | 9/16 | 1 | 7/8 | 7/8 |
| UP-2010 | UPS-2010 | 5/16 | 5/8 | 1-1/8 | 15/16 | 15/16 |
| UP-1214 | UPS-1214 | 7/16 | 3/8 | 13/16 | 5/8 | 5/8 |
| UP-1414 | UPS-1414 | 7/16 | 7/16 | 7/8 | 11/16 | 11/16 |
| UP-1614 | UPS-1614 | 7/16 | 1/2 | 1 | 13/16 | 13/16 |
| UP-1814 | UPS-1814 | 7/16 | 9/16 | 1 | 7/8 | 7/8 |
| UP-2014 | UPS-2014 | 7/16 | 5/8 | 1-1/8 | 15/16 | 15/16 |
| UP-2214 | UPS-2214 | 7/16 | 11/16 | 1-1/4 | 1 | 1 |
| UP-2414 | UPS-2414 | 7/16 | 3/4 | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-2814 | UPS-2614 | 7/16 | 13/16 | 1-3/8 | 1-1/8 | 1-1/4 |
| UP-2814 | UPS-2814 | 7/16 | 7/8 | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-3014 | UPS-3014 | 7/16 | 15/16 | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-3214 | UPS-3214 | 7/16 | 1 | 1-1/2 | 1-1/2 | 1-1/2 |
| UP-1820 | UPS-1820 | 5/8 | 9/16 | 1 | 7/8 | 7/8 |
| UP-2020 | UPS-2020 | 5/8 | 5/8 | 1-1/8 | 15/16 | 15/16 |
| UP-2220 | UPS-2220 | 5/8 | 11/16 | 1-1/4 | 1 | 1 |
| UP-2420 | UPS-2420 | 5/8 | 3/4 | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-2620 | UPS-2620 | 5/8 | 13/16 | 1-3/8 | 1-1/8 | 1-1/4 |
| UP-2820 | UPS-2820 | 5/8 | 7/8 | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-3020 | UPS-3020 | 5/8 | 15/16 | 1-3/4 | 1-3/8 | 1-3/8 |
| UP-3220 | UPS-3220 | 5/8 | 1 | 1-3/4 | 1-1/2 | 1-1/2 |
| UP-3420 | UPS-3420 | 5/8 | 1-1/16 | 2 | 1-1/2 | 1-1/2 |
| UP-3620 | UPS-3620 | 5/8 | 1-1/8 | 2 | 1-3/4 | 1-3/4 |
| UP-4020 | UPS-4020 | 5/8 | 1-1/4 | 2 | 1-3/4 | 1-3/4 |
| UP-4420 | UPS-4420 | 5/8 | 1-3/8 | 2 | 2 | 2 |
| UP-4820 | UPS-4820 | 5/8 | 1-1/2 | 2 | 2 | 2 |
| UP-8MM8 | UPS-8MM8 | 1/4 | 8MM | 3/4 | 5/8 | 7/16 |
UNIVERSALS CAN BE ORDERED TO YOUR SPECIFICATIONS (SUCH AS VARIOUS LENGTHS, 12 PT., SURFACE DRIVE ETC.)
Hex Drive Universals for Metric
| STD. TYPE | TENSION TYPE | HEX DRIVE (A) | HEX SIZE (B) | SOCKET LENGTH (C) | SOCKET DIAMETER (D) | NOSE DIAMETER (E) |
|---|---|---|---|---|---|---|
| UP-10MM8 | UPS-10MM8 | 1/4 | 10MM | 13/16 | 11/16 | 11/16 |
| UP-12MM8 | UPS-12MM8 | 1/4 | 12MM | 1 | 3/4 | 3/4 |
| UP-13MM8 | UPS-13MM8 | 1/4 | 13MM | 1 | 7/8 | 7/8 |
| UP-14MM8 | UPS-14MM8 | 1/4 | 14MM | 1 | 7/8 | 7/8 |
| UP-8MM10 | UPS-8MM10 | 5/16 | 8MM | 3/4 | 5/8 | 7/16 |
| UP-10MM10 | UPS-10MM10 | 5/16 | 10MM | 13/16 | 11/16 | 11/16 |
| UP-12MM10 | UPS-12MM10 | 5/16 | 12MM | 1 | 3/4 | 3/4 |
| UP-13MM10 | UPS-13MM10 | 5/16 | 13MM | 1 | 7/8 | 7/8 |
| UP-14MM10 | UPS-14MM10 | 5/16 | 14MM | 1 | 7/8 | 7/8 |
| UP-15MM10 | UPS-15MM10 | 5/16 | 15MM | 1-1/8 | 7/8 | 7/8 |
| UP-10MM14 | UPS-10MM14 | 7/16 | 10MM | 13/16 | 11/16 | 11/16 |
| UP-12MM14 | UPS-12MM14 | 7/16 | 12MM | 13/16 | 3/4 | 3/4 |
| UP-13MM14 | UPS-13MM14 | 7/16 | 13MM | 1 | 7/8 | 7/8 |
| UP-14MM14 | UPS-14MM14 | 7/16 | 14MM | 1 | 7/8 | 7/8 |
| UP-15MM14 | UPS-15MM14 | 7/16 | 15MM | 1-1/8 | 7/8 | 7/8 |
| UP-16MM14 | UPS-16MM14 | 7/16 | 16MM | 1-1/8 | 1 | 1 |
| UP-17MM14 | UPS-17MM14 | 7/16 | 17MM | 1-1/4 | 1 | 1 |
| UP-18MM14 | UPS-18MM14 | 7/16 | 18MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-19MM14 | UPS-19MM14 | 7/16 | 19MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-21MM14 | UPS-21MM14 | 7/16 | 21MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-22MM14 | UPS-22MM14 | 7/16 | 22MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-24MM14 | UPS-24MM14 | 7/16 | 24MM | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-14MM20 | UPS-14MM20 | 5/8 | 14MM | 1 | 7/8 | 7/8 |
| UP-15MM20 | UPS-15MM20 | 5/8 | 15MM | 1-1/8 | 7/8 | 7/8 |
| UP-16MM20 | UPS-16MM20 | 5/8 | 16MM | 1-1/8 | 1 | 1 |
| UP-17MM20 | UPS-17MM20 | 5/8 | 17MM | 1-1/4 | 1 | 1 |
| UP-18MM20 | UPS-18MM20 | 5/8 | 18MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-19MM20 | UPS-19MM20 | 5/8 | 19MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-21MM20 | UPS-21MM20 | 5/8 | 21MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-22MM20 | UPS-22MM20 | 5/8 | 22MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-24MM20 | UPS-24MM20 | 5/8 | 24MM | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-27MM20 | UPS-27MM20 | 5/8 | 27MM | 2 | 1-1/2 | 1-1/2 |
| UP-30MM20 | UPS-30MM20 | 5/8 | 30MM | 2 | 1-3/4 | 1-3/4 |
| UP-33MM20 | UPS-33MM20 | 5/8 | 33MM | 2-1/8 | 1-3/4 | 1-3/4 |
| UP-36MM20 | UPS-36MM20 | 5/8 | 36MM | 2-1/8 | 2 | 2 |
UNIVERSALS CAN BE ORDERED TO YOUR SPECIFICATIONS (SUCH AS VARIOUS LENGTHS, 12 PT., SURFACE DRIVE ETC.)

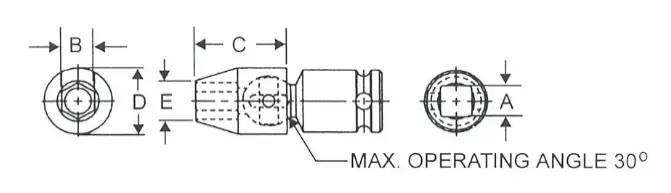

Square Drive Universals for SAE
| STD. TYPE | TENSION TYPE | SQUARE DRIVE (A) | HEX SIZE (B) | SOCKET LENGTH (C) | SOCKET DIAMETER (D) | NOSE DIAMETER (E) |
|---|---|---|---|---|---|---|
| UP-82 | UPS-82 | 1/4 | 1/4 | 3/4 | 5/8 | 3/8 |
| UP-102 | UPS-102 | 1/4 | 5/16 | 3/4 | 5/8 | 7/16 |
| UP-122 | UPS-122 | 1/4 | 3/8 | 13/16 | 5/8 | 5/8 |
| UP-142 | UPS-142 | 1/4 | 7/16 | 7/8 | 11/16 | 11/16 |
| UP-83 | UPS-83 | 3/8 | 1/4 | 3/4 | 5/8 | 5/8 |
| UP-103 | UPS-103 | 3/8 | 5/16 | 3/4 | 5/8 | 7/16 |
| UP-123 | UPS-123 | 3/8 | 3/8 | 13/16 | 5/8 | 11/16 |
| UP-143 | UPS-143 | 3/8 | 7/16 | 7/16 | 7/8 | 7/16 |
| UP-163 | UPS-163 | 3/8 | 1/2 | 1 | 13/16 | 13/16 |
| UP-183 | UPS-183 | 3/8 | 9/16 | 1 | 7/8 | 7/8 |
| UP-203 | UPS-203 | 3/8 | 5/8 | 1-1/8 | 15/16 | 15/16 |
| UP-223 | UPS-223 | 3/8 | 11/16 | 1-1/4 | 1 | 1 |
| UP-243 | UPS-243 | 3/8 | 3/4 | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-124 | UPS-124 | 1/2 | 3/8 | 13/16 | 5/8 | 0.625 |
| UP-144 | UPS-144 | 1/2 | 7/16 | 7/8 | 11/16 | 11/16 |
| UP-164 | UPS-164 | 1/2 | 1/2 | 1 | 13/16 | 13/16 |
| UP-184 | UPS-184 | 1/2 | 9/16 | 1 | 7/8 | 7/8 |
| UP-204 | UPS-204 | 1/2 | 5/8 | 1-1/8 | 15/16 | 15/16 |
| UP-224 | UPS-224 | 1/2 | 11/16 | 1-1/4 | 1 | 1 |
| UP-244 | UPS-244 | 1/2 | 3/4 | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-264 | UPS-264 | 1/2 | 13/16 | 1-3/8 | 1-1/8 | 1-1/4 |
| UP-284 | UPS-284 | 1/2 | 7/8 | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-185 | UPS-185 | 5/8 | 9/16 | 1-1/4 | 1-1/4 | 1 |
| UP-205 | UPS-205 | 5/8 | 5/8 | 1-1/4 | 1-1/4 | 1 |
| UP-225 | UPS-225 | 5/8 | 11/16 | 1-1/4 | 1-1/4 | 1 |
| UP-245 | UPS-245 | 5/8 | 3/4 | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-265 | UPS-265 | 5/8 | 13/16 | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-285 | UPS-285 | 5/8 | 7/8 | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-305 | UPS-305 | 5/8 | 15/16 | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-325 | UPS-325 | 5/8 | 1 | 1-1/2 | 1-1/2 | 1-1/2 |
| UP-306 | UPS-306 | 3/4 | 15/16 | 1-3/4 | 1-3/8 | 1-3/8 |
| UP-326 | UPS-326 | 3/4 | 1 | 1-3/4 | 1-1/2 | 1-1/2 |
| UP-346 | UPS-346 | 3/4 | 1-1/16 | 2 | 1-1/2 | 1-1/2 |
| UP-366 | UPS-366 | 3/4 | 1-1/8 | 2 | 1-1/2 | 1-1/2 |
| UP-406 | UPS-406 | 3/4 | 1-1/4 | 2 | 1-3/4 | 1-3/4 |
| UP-486 | UPS-486 | 3/4 | 1-1/2 | 2 | 2 | 2 |
UNIVERSALS CAN BE ORDERED TO YOUR SPECIFICATIONS (SUCH AS VARIOUS LENGTHS, 12 PT., SURFACE DRIVE ETC.)
Square Drive Universals for Metric
| STD. TYPE | TENSION TYPE | SQUARE DRIVE (A) | HEX SIZE (B) | SOCKET LENGTH (C) | SOCKET DIAMETER (D) | NOSE DIAMETER (E) |
|---|---|---|---|---|---|---|
| UP-8MM2 | UPS-8MM2 | 1/4 | 8MM | 3/4 | 5/8 | 7/16 |
| UP-10MM2 | UPS-10MM2 | 1/4 | 10MM | 13/16 | 11/16 | 11/16 |
| UP-12MM2 | UPS-12MM2 | 1/4 | 12MM | 1 | 3/4 | 3/4 |
| UP-13MM2 | UPS-13MM2 | 1/4 | 13MM | 1 | 7/8 | 7/8 |
| UP-8MM3 | UPS-8MM3 | 3/8 | 8MM | 3/4 | 5/8 | 7/16 |
| UP-10MM3 | UPS-10MM3 | 3/8 | 10MM | 13/16 | 11/16 | 11/16 |
| UP-12MM3 | UPS-12MM3 | 3/8 | 12MM | 13/16 | 3/4 | 3/4 |
| UP-13MM3 | UPS-13MM3 | 3/8 | 13MM | 1 | 7/8 | 7/8 |
| UP-14MM3 | UPS-14MM3 | 3/8 | 14MM | 1 | 7/8 | 7/8 |
| UP-15MM3 | UPS-15MM3 | 3/8 | 15MM | 1-1/8 | 7/8 | 7/8 |
| UP-16MM3 | UPS-16MM3 | 3/8 | 16MM | 1-1/8 | 1 | 1 |
| UP-17MM3 | UPS-17MM3 | 3/8 | 17MM | 1-1/4 | 1 | 1 |
| UP-18MM3 | UPS-18MM3 | 3/8 | 18MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-19MM3 | UPS-19MM3 | 3/8 | 19MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-12MM4 | UPS-12MM4 | 1/2 | 12MM | 13/16 | 11/16 | 11/16 |
| UP-13MM4 | UPS-13MM4 | 1/2 | 13MM | 1 | 7/8 | 7/8 |
| UP-14MM4 | UPS-14MM4 | 1/2 | 14MM | 1 | 7/8 | 7/8 |
| UP-15MM4 | UPS-15MM4 | 1/2 | 15MM | 1-1/8 | 7/8 | 7/8 |
| UP-16MM4 | UPS-16MM4 | 1/2 | 16MM | 1-1/8 | 1 | 1 |
| UP-17MM4 | UPS-17MM4 | 1/2 | 17MM | 1-1/4 | 1 | 1 |
| UP-18MM4 | UPS-18MM4 | 1/2 | 18MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-19MM4 | UPS-19MM4 | 1/2 | 19MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-21MM4 | UPS-21MM4 | 1/2 | 21MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-22MM4 | UPS-22MM4 | 1/2 | 22MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-24MM4 | UPS-24MM4 | 1/2 | 24MM | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-16MM5 | UPS-16MM5 | 5/8 | 16MM | 1-1/8 | 1 | 1 |
| UP-17MM5 | UPS-17MM5 | 5/8 | 17MM | 1-1/4 | 1 | 1 |
| UP-18MM5 | UPS-18MM5 | 5/8 | 18MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-19MM5 | UPS-19MM5 | 5/8 | 19MM | 1-1/4 | 1-1/8 | 1-1/8 |
| UP-21MM5 | UPS-21MM5 | 5/8 | 21MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-22MM5 | UPS-22MM5 | 5/8 | 22MM | 1-3/8 | 1-1/4 | 1-1/4 |
| UP-24MM5 | UPS-24MM5 | 5/8 | 24MM | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-24MM6 | UPS-24MM6 | 3/4 | 24MM | 1-3/8 | 1-3/8 | 1-3/8 |
| UP-27MM6 | UPS-27MM6 | 3/4 | 27MM | 2 | 1-1/2 | 1-1/2 |
| UP-30MM6 | UPS-30MM6 | 3/4 | 30MM | 2 | 1-3/4 | 1-3/4 |
| UP-33MM6 | UPS-33MM6 | 3/4 | 33MM | 2-1/8 | 1-3/4 | 1-3/4 |
| UP-36MM6 | UPS-36MM6 | 3/4 | 36MM | 2-1/8 | 2 | 2 |
UNIVERSALS CAN BE ORDERED TO YOUR SPECIFICATIONS (SUCH AS VARIOUS LENGTHS, 12 PT., SURFACE DRIVE ETC.)
