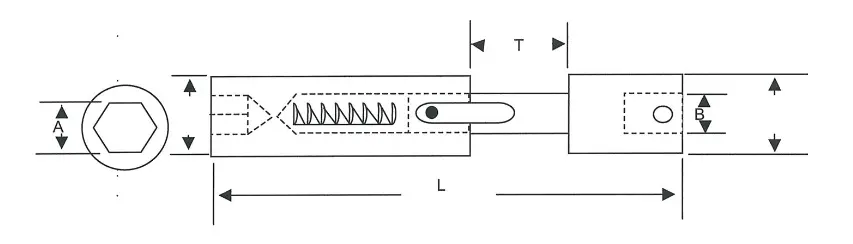

Spring Loaded Sockets
T = TRAVEL (STANDARD TRAVEL IS 1/2")
ADD 1/2" OF LENGTH FOR EACH ADDITIONAL 1/4" OF TRAVEL
| PART NUMBER | HEX (A) | SQUARE (B) | LENGTH STANDARD (L) |
|---|---|---|---|
| EXSSF-10MM3-L | 10MM | 3/8" | 3" |
| EXSSF-13MM3-L | 13MM | 3/8" | 3" |
| EXSSF-15MM3-L | 15MM | 3/8" | 3" |
| EXSSF-15MM4-L | 15MM | 1/2" | 3" |
| EXSSF-18MM4-L | 18MM | 1/2" | 3" |
| EXSSF-19MM4-L | 19MM | 1/2" | 3" |
| EXSSF-19MM6-L | 19MM | 3/4" | 3" |
| EXSSF-24MM6-L | 24MM | 3/4" | 3" |
THESE SOCKETS ARE AVAILABLE IN ADDITIONAL LENGTHS, SPRING LOADED, SIDEWALL MAGNETS, THIN WALL, DEEP BROACH, ETC
