Pulse Tool Sockets

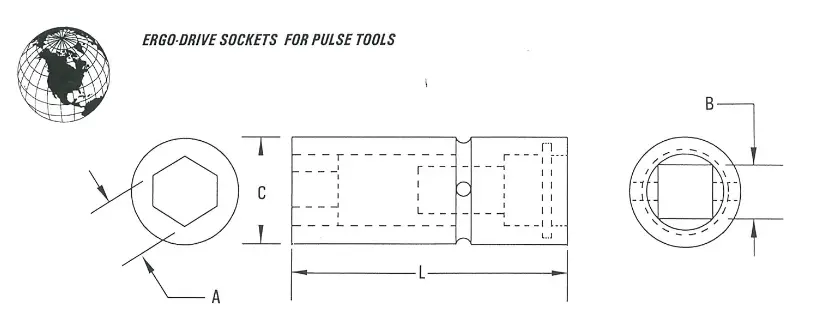

| S. A. E. | | | | METRIC | | | |
| PART # | HEX A | SQUARE B | DIAM. C | PART # | HEX A | SQUARE B | DIAM. C |
| 9P-103-L | 5/16 | 3/8 | 3/4 | 9P-8MM3-L | 8MM | 3/8 | 3/4 |
| 9P-123-L | 3/8 | 3/8 | 3/4 | 9P-10MM3-L | 10MM | 3/8 | 3/4 |
| 9P-163-L | 1/2 | 3/8 | 13/16 | 9P-13MM3-L | 13MM | 3/8 | 13/16 |
| 9P-183-L | 9/16 | 3/8 | 7/8 | 9P-14MM3-L | 14MM | 3/8 | 7/8 |
| 9P-203-L | 5/8 | 3/8 | 15/16 | 9P-15MM3-L | 15MM | 3/8 | 7/8 |
| 9P-243-L | 3/4 | 3/8 | 1-1/8 | 9P-18MM3-L | 18MM | 3/8 | 1-1/8 |
| 9P-164-L | 1/2 | 1/2 | 15/16 | 9P-13MM4-L | 13MM | 1/2 | 15/16 |
| 9P-184-L | 9/16 | 1/2 | 15/16 | 9P-14MM4-L | 14MM | 1/2 | 15/16 |
| 9P-204-L | 5/8 | 1/2 | 15/16 | 9P-15MM4-L | 15MM | 1/2 | 15/16 |
| 9P-244-L | 3/4 | 1/2 | 1-1/8 | 9P-18MM4-L | 18MM | 1/2 | 1-1/8 |
| 9P-284-L | 7/8 | 1/2 | 1-3/8 | 9P-22MM4-L | 22MM | 1/2 | 1-3/8 |
| 9P-304-L | 15/16 | 1/2 | 1-1/2 | 9P-24MM4-L | 24MM | 1/2 | 1-1/2 |
| 9P-246-L | 3/4 | 3/4 | 1-1/2 | 9P-19MM6-L | 19MM | 3/4 | 1-1/2 |
| 9P-286-L | 7/8 | 3/4 | 1-1/2 | 9P-22MM6-L | 22MM | 3/4 | 1-1/2 |
| 9P-306-L | 15/16 | 3/4 | 1-1/2 | 9P-24MM6-L | 24MM | 3/4 | 1-1/2 |
| 9P-326-L | 1 | 3/4 | 1-1/2 | 9P-27MM6-L | 27MM | 3/4 | 1-5/8 |
| 9P-346-L | 1-1/16 | 3/4 | 1-5/8 | 9P-30MM6-L | 30MM | 3/4 | 1-3/4 |
| 9P-348-L | 1-1/16 | 1 | 2 | 9P-27MM8-L | 27MM | 1 | 2 |
| 9P-368-L | 1-1/8 | 1 | 2 | 9P-30MM8-L | 30MM | 1 | 2 |
| 9P-408-L | 1-1/4 | 1 | 2 | 9P-32MM8-L | 32MM | 1 | 2 |
| 9P-488-L | 1-1/2 | 1 | 2 | 9P-36MM8-L | 36MM | 1 | 2 |
